Troubleshooting

This document summarizes common SDK issues. Always complete the general checks first to ensure the robot is in a runnable state, then verify status/version information, and finally troubleshoot specific symptoms.

Quick Navigation​

If your issue is not listed below, jump to Still Not Resolved? at the end of this page.

Use this unified order first:

  1. General Checks (Do These First): confirm emergency stop is released, then confirm the robot is not in ABNORMAL mode. Normal operating mode is the prerequisite for all robot functions.
  2. System and Configuration: after mode is normal, verify robot/SDK version alignment.
  3. Specific issue symptoms: follow the corresponding section.

If you want to check robot status or version:

If the robot does not move or respond:

If this is a system configuration issue:

If this is a camera-related issue:

If this is another issue:

Before You Start​

  • Run log/process commands on the correct platform first:
    • HPU: localization, navigation, planning, perception services (for example localization, navigation, mps, perception).
    • XCU: motion-control services (for example singorix, end-effector control, mode management).
    • Quick rule: if robot is connected but cannot move / motion is abnormal, check XCU first; if robot can move but map/path/obstacle/perception is abnormal, check HPU first.
  • Paths, service names, and config keys are case-sensitive.
  • For PC-side remote deployment, verify network and IP configuration are effective before deeper troubleshooting.

General Checks (Do These First)​

  1. Emergency stop: confirm the red emergency stop button on the robot back is released (popped up).
  2. Operating mode: run /data/bin/sys_tool on XCU and confirm mode is not ABNORMAL.
  3. Abnormal service location: if mode is ABNORMAL, check /userdata/log/mission_manager/mission_manager.INFO and search abnormal_service. Recover normal mode first.
  4. Status/version check: only after mode is normal, check SN, system version, and mode details.
  5. Service status: check key services by issue type (singorix, galbot_chassis_service, etc.).

Control and Motion​

No Response to Control Commands​

Complete the General Checks first, then continue with the control chain.

Check main log:

tail -f /userdata/log/SingoriX/info/singorix_wbcs_main.INFO

Check singorix process:

ps -ef | grep singorix | grep -v grep

If singorix is running but control still does not respond, check chassis-related processes:

ps -ef | grep chassis

For PC-side deployment, configs may be reverted after reboot. Check enable_modify_embosa_cfg in /data/config/system.cfg on both HPU and XCU. If set to false, embosa_ip_config.json will not be overwritten during reboot flow.

Emergency Stop Button Status Check singorix Service Chassis Service Error

SDK Works on Robot but Fails over Wired PC Connection​

Symptom: SDK programs run correctly on the robot itself, but fail when running from a wired PC connection.
Common cause: embosa_ip is misconfigured, or config was reset.

Recommended handling:

  1. Verify network configuration first, especially PC/XCU/HPU IPs and embosa_ip_config.json.
  2. Reference: PC-Side Deployment - Ubuntu / 2. Network Configuration
  3. If config is correct but gets reset again, use: embosa IP Configuration Reverted After Reboot

Robot Joint Cannot Move​

This section applies when a joint in the head, leg, or arm becomes unresponsive.

First check singorix log to identify the specific error:

tail -f /userdata/log/SingoriX/info/singorix_wbcs_main.INFO

Possible Cause 1: Joint Exceeds Motion Range Limit​

The joint may have reached or exceeded its mechanical limit. This is more common in arm joints and can be visually observed through abnormal posture. SingoriX will output corresponding error messages.

Joint Limit Error

Joint Out-of-Limit Recovery​

Recommended order:

  1. Hold the teach button and manually drag the arm back within joint limits.
  2. If it cannot be dragged, identify which joint is over-limit. Hidden brake-release buttons are available near joint 2 and 3.
  3. Remove the piston, press emergency stop, then press the hidden brake-release button and drag the arm back within limits.
  4. Release (twist open) emergency stop and check whether joint recovers.

Hidden Brake-Release Button Example (Joint 2/3)

If the over-limit joint has no hidden brake-release button, use Method 2:

  1. Enter service_display backend: continuously tap the lower-right corner of the chest screen until backend login appears, then enter password 996996.
  2. After login: open Left Arm Motor or Right Arm Motor -> Motor Operation.
  3. In the first input box, enter the target joint index (for example joint 4).
  4. Press emergency stop, then release it, and wait 10s.
  5. Click in order: Idle Mode -> Limit Extension -> Clear Fault -> Clear Fault -> Clear Fault -> Clear Fault -> Enable -> Current Mode (interval at least 1s between clicks).
  6. Check whether the target joint can rotate. If not, repeat Step 4 and Step 5.
  7. After handling, run on XCU to exit this interface and restore normal run state:
systemctl restart launcher

Backend Motor Operation Example

Possible Cause 2: Joint Initialization Failure​

The joint failed to release the brake during robot startup (no brake release sound). SingoriX will output initialization failure error messages.

The following screenshot shows an example of head joint initialization failure:

Joint Initialization Failed

Recommendation: Restart the robot and listen for brake release sound during startup.

Possible Cause 3: MCU Failure​

The Microcontroller Unit (MCU) may have encountered an error or stopped responding. Check the latest log files in the following directories to verify logs are continuously updating without errors:

  • /userdata/log/mp_core/
  • /userdata/log/secure_core/

Robot Enters Abnormal Mode: Localization Service Error​

Symptom: robot enters ABNORMAL and reports localization service error.
Common on new robots.

Common cause: mapping has not been completed, so localization cannot run correctly.

Recommended handling:

  1. Confirm whether mapping has been completed.
  2. If not, complete mapping and localization first.
  3. After mapping, run on HPU:
sudo systemctl restart launcher.service
  1. Re-check mode and confirm recovery to WORKING_MODE.

Reference:

Robot Enters Abnormal Mode: Restart Services​

If robot enters abnormal mode, a common quick recovery is restarting launcher.

  • On XCU:
systemctl restart launcher
  • On HPU:
sudo systemctl restart launcher

Robot Chassis Cannot Move​

If chassis cannot move, complete General Checks first, then check service status and battery.

Check chassis service:

ps -ef | grep galbot_chassis_service | grep -v grep

Check SOC:

tail -f /userdata/log/galbot_chassis_service/galbot_chassis_service.INFO | grep soc

When SOC is below 25%, chassis enters protection stop. Charge first.

Check Chassis Service Low Battery Warning

End Effector Control Failure​

First complete General Checks, then do end-effector specific checks: press and release emergency stop and observe basic response. If there is no response at all, prioritize hardware-fault investigation.

If there is response but behavior is incorrect, verify configuration consistency.

/data/config/SingoriX/galbot_one_golf/real/robot_config.toml

For version 1.16+, overlay path is:

/data/config/default/SingoriX/galbot_g1-v2.2/robot_config.toml

Default is left gripper + right suction cup. Confirm physical installation matches config (for example right_suction_cup vs right_gripper). Restart launcher after modification:

systemctl restart launcher

Gripper Configuration

No Sound from Robot Speaker/Enable Audio Service galbot_vtn​

On Orin/HPU, edit:

/data/config/launcher.cfg

Change target enable from false to true, then:

sudo systemctl restart launcher
systemctl status launcher

Enable galbot_vtn Example

System and Configuration​

How to Check the Current Operating Mode​

Use sys_tool on XCU.

  1. Login XCU:
ssh root@192.168.xxx.xx
# password: 12345678
  1. Start tool:
cd /data/bin
./sys_tool

sys_tool path: /data/bin/sys_tool. It supports baseline version query and robot mode query/switch.

Common commands:

  • v: query baseline version info (includes SN, software/hardware version).
  • q: query current robot mode.

Mode judgment:

  • Normal should show mode_type: WORKING_MODE.
  • If not WORKING_MODE (for example ABNORMAL), locate abnormal_service first via General Checks.

Example (q key fields):

current mode:
mode_type: WORKING_MODE
mode_switch_state {
  status: SUCCESS
}

Operating Mode Query Example abnormal_service Log Example

How to Check the Robot System Version​

Recommended:

galbot_sdk check-version

If the robot uses a non-default IP address:

galbot_sdk check-version --robot-ip <robot-ip>

If unavailable, on XCU or HPU:

cat /data/config/system.cfg

Check CUR_VERSION.

CUR_VERSION Field Example

How to Check Robot System and SDK Version Compatibility​

galbot_sdk check-version

Common options:

# Specify a non-default robot IP address
galbot_sdk check-version --robot-ip <robot-ip>

# Show full compatibility matrix
galbot_sdk check-version --list

# Offline manual validation
galbot_sdk check-version --sdk-version 1.8.0 --robot-version GBS_1.16.0

Compatibility matrix (from output/check_robot_compat.py):

SDK Version RangeRobot System Version (GBS)
1.5.0 ~ 1.7.99GBS_1.15.x
1.8.0 ~ 1.8.99GBS_1.16.x

If mismatch occurs, upgrade robot system version to match SDK requirement first; only downgrade SDK if robot version must remain unchanged.

Emergency Switch (E-Stop) Overview​

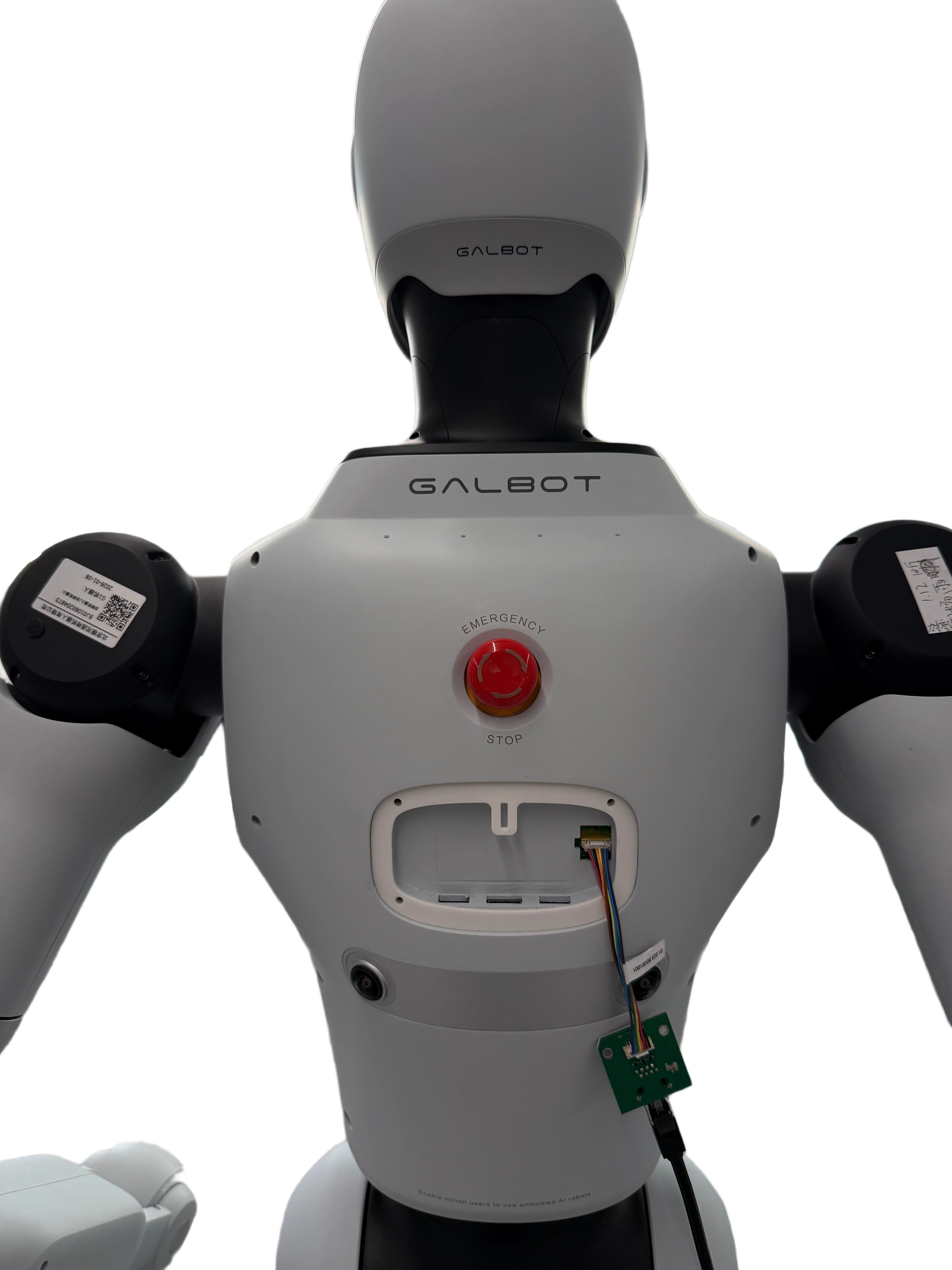

The emergency stop button is on the robot back in a visible location. It is a red button labeled EMERGENCY STOP.

Robot Emergency Stop Button

Usage:

  1. If equipment abnormality or personal safety risk is detected, press emergency stop immediately.
  2. After triggered, robot motion stops immediately. Power stays on; motion and actuator execution are locked.
  3. Emergency stop self-locks after pressing; rotate clockwise to release.
  4. After release/reset, robot can receive control commands again and resume normal motion.

Onboard Computing Units (HPU + XCU)​

Galbot G1 uses a dual-compute-unit architecture: HPU (High-Performance Unit) + XCU (X Computing Unit).
HPU handles high-compute tasks such as vision perception, AI inference, motion planning, and navigation. XCU handles low-level motor control, joint actuation, and real-time control.

Compute UnitFull NameResponsibilityTypical Tasks
HPUHigh-Performance UnitHigh-compute tasksVision perception, AI inference, motion planning, navigation, SLAM
XCUX Computing UnitReal-time control tasksLow-level motor control, joint actuation, real-time control
  • Hardware: HPU uses NVIDIA Jetson Orin (64GB, 275 TOPS); XCU is the real-time control-side processor.
  • System software: customized Linux with real-time kernel patches for deterministic motion control.
  • Architecture note: both HPU and XCU are ARM64 (aarch64); use aarch64 toolchain for binaries running on these platforms.

Why two compute units:

  • Real-time isolation: motor control needs deterministic microsecond-level response; vision inference can occupy GPU for hundreds of milliseconds.
  • Fault isolation: if HPU-side AI crashes, XCU can still maintain low-level control and standing posture.
  • Scalability: future compute upgrades can focus on replacing Orin while keeping XCU real-time firmware stable.

How to Access HPU and XCU​

Get login IP by:

  1. Checking wireless IP on robot Network screen.
  2. Wired PC-robot direct connection fixed IPs:
    • XCU: 192.168.1.66
    • HPU (Orin): 192.168.1.88

Login and credentials:

  • HPU (Orin):
ssh galbot@<Orin_IP>
# password: gb@2023
  • XCU:
ssh root@<XCU_IP>
# password: 12345678

Run ping first, then ssh.

How to Check Robot SN​

On XCU:

/data/bin/sys_tool

Follow tool prompts to view device information.

How to Check Whether Joints Are Healthy​

Login XCU and open joint diagnostic tool, input r to view status.
No Errors generally means joints are normal. If emergency-stop or high joint-speed errors appear, reset first then retest.

Joint E-Stop Error Example Joint Speed Error Example

How to Enable Real-Time End-Effector Control Commands​

On XCU, modify:

/data/config/default/SingoriX/galbot_g1-v2.2/robot_config.toml

Set using_wbc to true, then restart launcher.

Where Joint Limits Are Configured​

IK, planning, and control all use the same joint limits from URDF: galbot_one_golf.urdf.

  • XCU: /data/config/galbot_description/galbot_one_golf_description
  • HPU: /data/galbot/config/galbot_description/galbot_one_golf_description

Enable/Disable a System Service​

Determine whether target service runs on HPU or XCU, login the corresponding platform, then edit:

/userdata/user_config/mode_service_config_default.toml

Comment/uncomment the target service item, then restart launcher on that same platform:

systemctl restart launcher

Enable/Disable Service Config Example

embosa IP Configuration Reverted After Reboot​

On both XCU and HPU, set enable_modify_embosa_cfg=false in /data/config/system.cfg, then restart launcher on each side.

embosa Config Field Example

Camera and Calibration​

How to Change Camera Resolution​

On Orin, modify:

  • /data/galbot/config/right_arm_camera.cfg
  • /data/galbot/config/left_arm_camera.cfg
  • /data/galbot/config/front_head_camera.cfg

Changes take effect after robot reboot. With multiple sensors enabled simultaneously, lowering resolution can improve stability.

Camera Resolution Config Example 1 Camera Resolution Config Example 2

How to Check Camera Frame Rate​

Check config in /data/galbot/config/xxx.cfg, then use /data/galbot/bin/embosa_topic_tool on HPU to measure topic rate.

Camera FPS Command Example Topic Rate Example

How to Check Camera Intrinsics/Extrinsics and Calibration Info​

On XCU:

cat /userdata/config/robot_config/eyehand_calib.toml
cat /userdata/config/robot_config/stereo_camera_intrinsic.toml

You can also use SDK interfaces. Example for left-arm camera extrinsic:

transform = robot.get_transform(
    target_frame="base_link",
    source_frame="left_arm_camera_color_optical_frame",
)

Or:

transform = robot.get_sensor_extrinsic(sensor_id=SensorType.LEFT_ARM_CAMERA)

Logs and Debugging​

Where Low-Level Service Logs Are Stored​

Low-level services are platform-specific:

  • HPU: localization, navigation, planning, perception.
  • XCU: control, chassis.

Logs are under /userdata/log/<service_name>/ on the corresponding platform. Examples:

  • HPU: /userdata/log/localization_server/, /userdata/log/service_navigation_plan/, /userdata/log/service_motion_plan/, /userdata/log/Perception_Algorithm_Service/
  • XCU: /userdata/log/SingoriX/, /userdata/log/galbot_chassis_service/, /userdata/log/service_display/, /userdata/log/mission_manager/

Always identify the service platform first, then check logs on that platform.

Where SDK Logs Are Stored​

SDK runtime logs (PC or Robot side) are in:

~/galbot_sdk_log/

If you see get info failed or PUBLISH FAIL on PC, check embosa_ip_config.json on both sides first.

How to Enable and Debug Core Dumps​

Core dumps are used for service crash analysis. After enabling core dumps and setting path (then relogin shell), files usually appear in:

/userdata/core

For example with mps service:

gdb /data/galbot/bin/service_motion_plan [core_file]

Run bt -full in gdb.

Core Backtrace Example (bt -full)

Python on Robot Cannot Find a Module​

Add to ~/.bashrc:

export PYTHONPATH=/data/galbot/lib:$PYTHONPATH

Relogin to take effect.

Python Example Error: numpy Has No typeDict​

Usually caused by older scipy. Upgrade:

pip install --upgrade scipy

Installation and Environment​

How to Start SDK Docker​

gunzip -c galbot_sdk_image_1.8.0.tar.gz | docker load
cd output/docker
./run.sh

How to Use Perception Service (GBS 1.15.16+)​

On HPU, modify:

/data/galbot/config/galbot_perception_moduleConfig.yaml

Set sensor_data_sync_max_diff_tolerance to 500000 (ns), restart launcher, then validate with examples under examples/g1/python/galbot_perception.

Still Not Resolved?​

If your issue is not listed, submit an issue on GitHub:
https://github.com/GalaxyGeneralRobotics/GalbotSDK/issues

Please include SDK/robot versions and problem details. We will assist recovery as soon as possible. You may also contact after-sales technical support directly.
